Material Providers
Determines which Material to use where.
Constant
Provides one constant block type.
Parameters:
| Name | Description |
|---|---|
| BlockType | string name of the Hytale block type, for example: “Rock_Stone”. |
Solidity
Separates into Solid and Empty terrain blocks and provides a Material Provider slot for each of the two selections.
Parameters:
| Name | Description |
|---|---|
| Solid | Material Provider slot. |
| Empty | Material Provider slot. |
Queue
Goes through a queue of Material Provider slots from highest to lowest priority. If a Material Provider in the queue doesn’t provide a block type the next one in the queue is queried. If no slot provides a block then the Queue Material Provider will not provide a block. The query stops at the first slot that provides a block.
Parameters:
| Name | Description |
|---|---|
| Queue | list of Material Provider slots. The slots are queried from top to bottom. |
SimpleHorizontal
Applies the child Material Provider on a vertical range.;
If a BaseHeight is provided, the TopY and BottomY values are relative to the BaseHeight, otherwise they're relative to the world's Y coordinate.
Parameters:
| Name | Description |
|---|---|
| TopY | integer Y coordinate that defines the vertical top exclusive limit of the region. |
| Top BaseHeight | string. BaseHeight name. |
| BottomY | integer Y coordinate that defines the vertical bottom inclusive limit of the region. |
| Bottom BaseHeight | string. BaseHeight name. |
| Material | Material Provider slot to query for the selected region. |
Striped
Applies a Material Provider slot on a set of horizontal stripes of blocks of varying thickness and position. Below is an example image of basalt stripes into a stone cliff.
Parameters:
| Name | Description |
|---|---|
| Stripes | list of stripe assets each containing a TopY and BottomY keys: TopY: any integer representing a world Y value, is inclusive. BottomY: any integer representing a world Y value, is inclusive. |
| Material | Material Provider slot to query for the selected region. |
Weighted
Picks the Material Provider slot to query from a list. Each slot has a weight which determines the likelihood for it to be picked.
Parameters:
| Name | Description |
|---|---|
| Seed | string. |
| SkipChance | value from 0.0 to 1.0 determining the percentage of blocks that are skipped. When a block is skipped this Material Provider basically provides no block and it skips picking a slot all together. |
| WeightedMaterials | List of weighted Material Provider slots: Weight: value above 0. Greater value results in higher likelihood of being picked. Material: Material Provider slot. |
FieldFunction
Selects a 3D region using a noise function and value delimiters. The delimiters link a Material Provider slot to a specific range of values in the noise function. The noise function shares seeds with the DAOTerrain density function.
Parameters:
| Name | Description |
|---|---|
| FieldFunction | defines the field value for each block. Like in the example above, this is the same type of asset as the one used in DAOTerrain to define density. |
| Delimiters | list of delimiters. Higher in the list results in higher priority. |
| From | any floating point value defining the minimum limit of the delimiter’s range. |
| To | any floating point value defining the maximum limit of the delimiter’s range. |
| Material | Material Provider slot linked to this delimiter. |
SpaceAndDepth

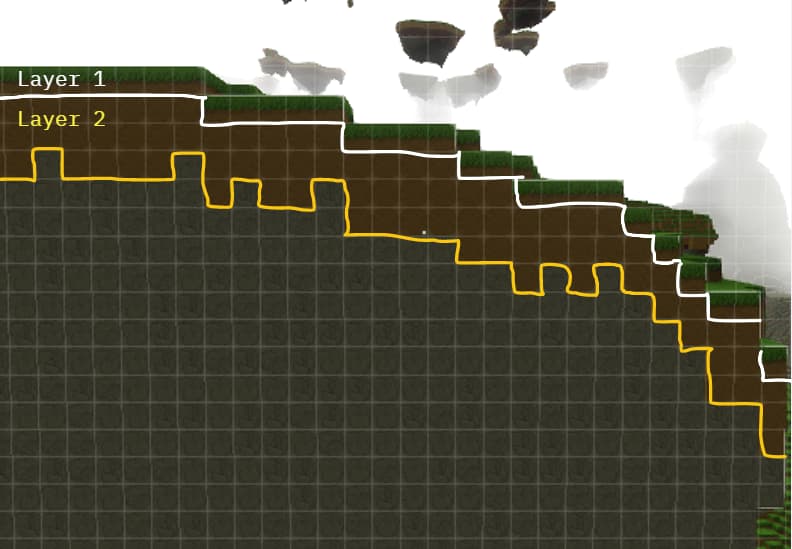

Allows placing layers of blocks on a terrain’s floor or ceiling surfaces. Layers of Material are piled on each other inside the surface (floor or ceiling) like a cake. There are multiple Layer types, each type providing a unique way to define its thickness. Below is an example of two layers into the floor of our terrain.
Conditions let you skip this Material Provider if they are not met. An example of this could be a condition that only places grass if there is at least 5 blocks of empty above the surface.
Parameters:
| Name | Description |
|---|---|
| LayerContext | string. The context the layers are applied on. For example if the context is DEPTH_INTO_FLOOR then the layers will be applied relative to the depth into the floor. So the first layer will be the topmost block of the floor, and each consecutive layer will build deeper under the previous layer. The graphic above illustrates that.Possible values: DEPTH_INTO_FLOOR and DEPTH_INTO_CEILING. |
| MaxExpectedDepth | Positive Integer. This value helps the system optimize this Material Provider by not performing more depth lookups than necessary. Ideally you should set this value at the maximum expected depth all of the layers combined can have.For example, if I have 3 layers in my provider as such: first layer is 1 block thick, second layer is 2 to 4 blocks thick and the third layer is 0 to 5 blocks thick, then my MaxExpectedDepth value should be the maximum of all these layers, in my case 1 + 4 + 5 = 10. Setting a value that is too small might cut off the extreme ends of a layer, while setting a value that is too large might result in poor performance for super complex configs. |
| Condition | slot for a Condition object, see the Condition’s documentation below. The Material Provider returns no block if the Condition isn’t met for the current block. |
| Layers | List of Layer objects, see the Layer’s documentation below. The Material Provider will pile the layers from the top of the list down as it gets deeper into the context. The diagram above shows that. |
Condition
A Condition object checks if the environment is valid to determine whether the Material Provider should be run for the current block. If the Condition fails for a block then the Material Provider will return no block.

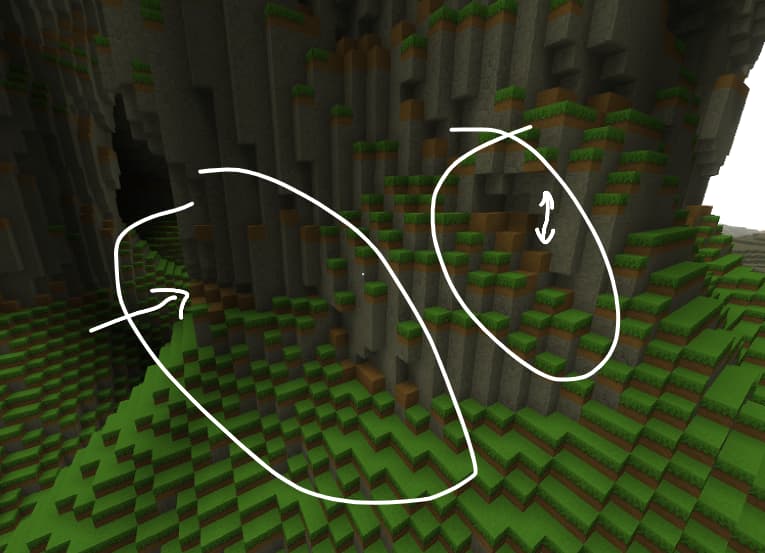

An example of Condition could be to check if there is at least 5 blocks of empty space above the floor. This condition could be useful if you want dirt blocks in tight spaces instead of grass. An example of that is shown below.
See the JSON code here.
The Condition’s ContextToCheck parameter is the information from the block’s context that you can query in your Condition. In the example above we are checking the SPACE_ABOVE_FLOOR context, which is the number of blocks above the floor. There are currently two possible context values you can use:
- SPACE_ABOVE_FLOOR
- SPACE_BELOW_CEILING
There are multiple Condition types that allow you to compose more complex Conditions from simpler ones. Below are the different types.
EqualsCondition
Validates only if a context value is equal to the Condition’s configured value.
Parameters:
| Name | Description |
|---|---|
| ContextToCheck | string and can have two values, namely SPACE_ABOVE_FLOOR and SPACE_BELOW_CEILING. These are documented above. |
| Value | any integer. The only valid value of this Condition, if the context value is different then the Condition fails. |
GreaterThanCondition
Validates only if a context value is greater than the Condition’s configured threshold.
Parameters:
| Name | Description |
|---|---|
| ContextToCheck | string and can have two values, namely SPACE_ABOVE_FLOOR and SPACE_BELOW_CEILING. These are documented above. |
| Threshold | any integer. For the condition to succeed the context value must be greater than the threshold value. |
SmallerThanCondition
Validates only if a context value is smaller than the Condition’s configured threshold.
Parameters:
| Name | Description |
|---|---|
| ContextToCheck | string and can have two values, namely SPACE_ABOVE_FLOOR and SPACE_BELOW_CEILING. These are documented above. |
| Threshold | any integer. For the condition to succeed the context value must be smaller than the threshold value. |
AndCondition
AND operator logical Condition. Validates only if all of its Condition slots also validate.
Parameters:
| Name | Description |
|---|---|
| Conditions | List of Condition slots. |
OrCondition
OR operator logical Condition. Validates if any of its Condition slots also validate.
Parameters:
| Name | Description |
|---|---|
| Conditions | List of Condition slots. |
NotCondition
NOT operator logical Condition. Validates if its Condition slot does not validate.
Parameters:
| Name | Description |
|---|---|
| Condition | Condition slot. Note that this is a single slot and not a list like the AND and the OR variants. |
AlwaysTrueCondition
This Condition type always validates.
Layer
In the DepthAndSpace Material Provider type, Layers are stacked into the depth of the floor or ceiling. Layers have a thickness and Material Provider.
Below are some examples that illustrate how layers work.

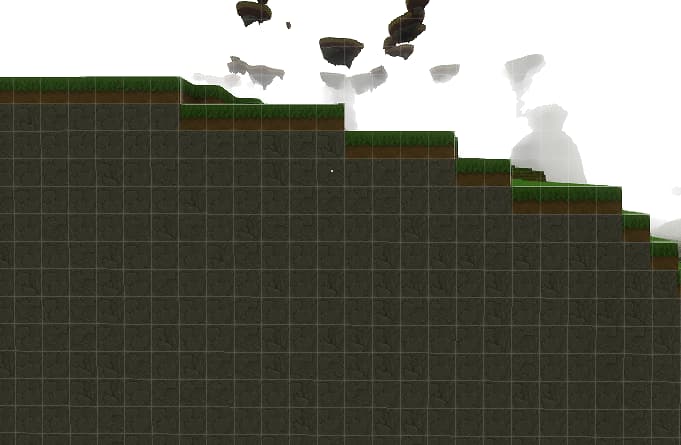

Example 1:
- Layer 1: grass of thickness 1.
Example 2:
- Layer 1: grass of thickness 1.
- Layer 2: dirt of thickness ranging from 2 to 3.
Example 3:
- Layer 1: mud of thickness 1 to 5 defined by a 2D simplex noise function.
- Layer 2: dirt of thickness ranging from 2 to 3.

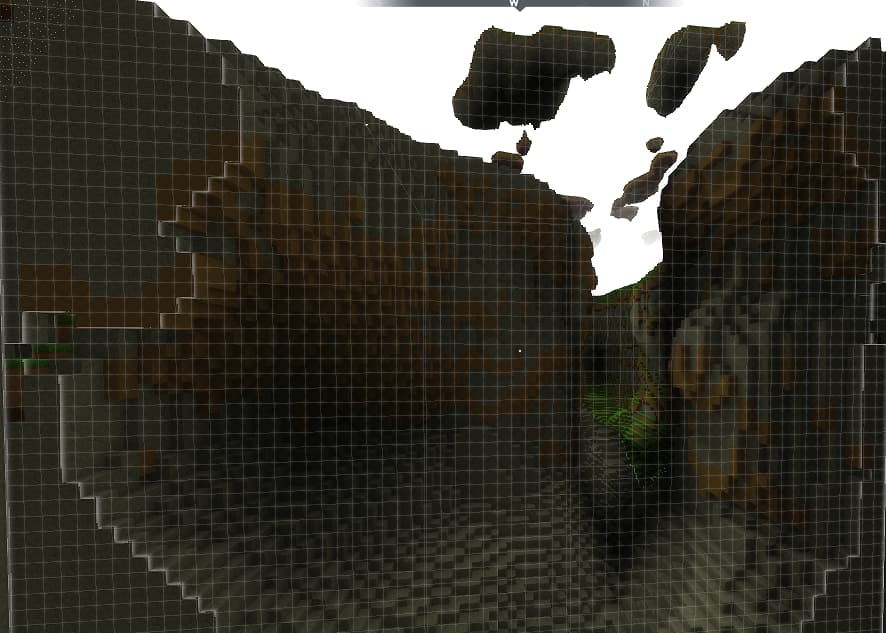

Example 4: This example shows how this can work not only on floors but also on the ceilings by changing the LayerContext value to DEPTH_INTO_CEILING.
- Layer 1: dirt of thickness in range 2 to 3.
End of examples.
Below are documented the different types of Layers.
ConstantThickness
Has the same thickness everywhere.
Parameters:
| Name | Description |
|---|---|
| Material | slot for Material Provider. |
| Thickness | integer greater or equal to 0, the thickness in blocks. |
RangeThickness
The thickness varies per XZ coordinate and is defined by a range of possible values.
Parameters:
| Name | Description |
|---|---|
| Material | slot for Material Provider. |
| RangeMin | integer greater or equal to 0, the minimum value in blocks the range can have. |
| RangeMax | integer greater or equal to 0, the maximum inclusive value in blocks the range can have. |
| Seed | string. |
WeightedThickness
The thickness varies per XZ coordinate and is picked from a list of weighted thickness values.
Parameters:
| Name | Description |
|---|---|
| Material | slot for Material Provider. |
| PossibleThicknesses | a list of weighted thickness values. |
| Seed | the seed used when picking the thickness. |
NoiseThickness
The thickness varies per XZ coordinate and is determined by a noise function tree. Note that the thickness value is determined by the function output, this is why in the example below I normalized the output to be from 0 to 5 because I wanted the thickest point to be around 5 blocks.
Parameters:
| Name | Description |
|---|---|
| Material | slot for Material Provider. |
| ThicknessFunctionXZ | a noise function tree. This function is only sampled with XZ inputs with a constant Y of 0. In other words, this function is sampled like a 2D function on the XZ plane. |
Imported
Imports an exported MaterialProvider..
Parameters:
| Name | Description |
|---|---|
| Name | string. The exported MaterialProvider. |
